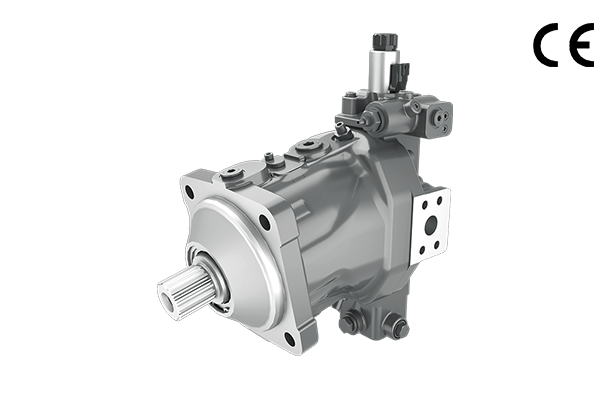

Specification: 28~280 cc/rev
Rated pressure: 400~450 bar
Maximu pressure: 450~530 bar
Flange and plug-in designs are optional to meet different installation methods.
Higher pressure and higher speed
Superior performance in low speed operation provides excellent controllability.
High activation efficiency. · Various controllers are optional.
Wider operating range (Theoretically capable of swinging to 0 ° )
High torque and long service life.
Flush valve, high-pressure relief valve, and balancing valve options available
Suitable for engineering machinery and general industrial vehicles, especially rotary drilling rigs and cranes.
| Size | 28 | 60 | 85 | 115 | 160 | 170 | 200 | 215 | 280 | |
| Max displacement (cc/rev) | 28.1 | 62 | 85.2 | 115.6 | 160 | 171.8 | 200 | 216.5 | 280.1 | |
| Min displacement (cc/rev) | 0 | |||||||||
| Direction of rotation | Clockwise, Counter clockwise | |||||||||
| Rotation speed (rpm) (Not at min. displacement) | Rated | 5550 | 4450 | 3900 | 3550 | 3100 | 3100 | 2900 | 2900 | 2500 |
| Max. | 8750 | 7200 | 6800 | 6150 | 4900 | 4900 | 4600 | 4800 | 3550 | |
| Rotation speed (rpm) (At min. displacement) | Max. | 10450 | 8400 | 8350 | 7350 | 5500 | 5750 | 5100 | 5500 | 3550 |
| Pressure (bar) | Rated | 400 | 450 | 450 | 450 | 400 | 450 | 400 | 450 | 450 |
| Max. | 450 | 530 | 530 | 530 | 450 | 530 | 450 | 530 | 500 | |
| Casting pressure | Rated (bar) | 6 | ||||||||
| Max. (bar) (Short-time peak pressure) | 10 | |||||||||
| Max. output torque (N·m), (ΔP =450bar) | 179 (ΔP = 400bar) | 444 | 610 | 828 | 1019 (ΔP = 400bar) | 1230 | 1273 (ΔP = 400bar) | 1550 | 2006 | |
| Weight (Kg) (Approximate value) | 21.5 | 31 | 39 | 46 | 67 | 62 | 78 | 78 | 101 | |
| Oil viscosity (mm2/s) | 10~1000, Best range: 16~36 | |||||||||
| Oil Temperature (℃ ) | -25 ~ 103 | |||||||||
| Oil Cleanliness | ISO 4406 20/18/15 | |||||||||
| Moment of inertia (kg·m2) | 0.0014 | 0.0043 | 0.0072 | 0.0110 | 0.0253 | 0.0213 | 0.0353 | 0.0303 | 0.0479 | |
